PAPER BATTERY – Characteristics

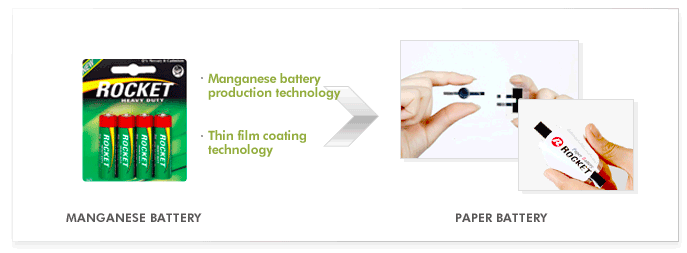

– Paper battery is a new concept of manganese battery developed from applying the technology of thin film printing, and has a flexible and thin physical characteristics.
– It is a battery suitable for equipments that consume a microamper current. The unit cell has 1.5V, and could be supplied with 2-series battery with 3V.

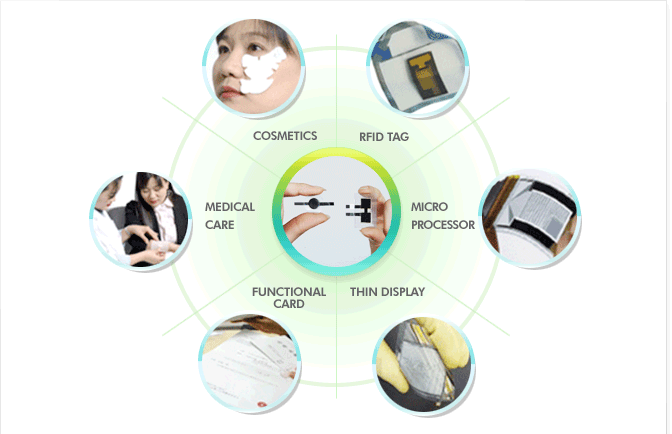

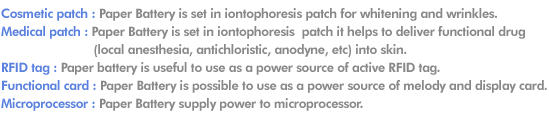

– Low manufacture costs will help applied usage in various form of application fields RFID, smart card, cosmetics and medical cares. For examples RFID tag, smart card, iontophoresis patches, etc.

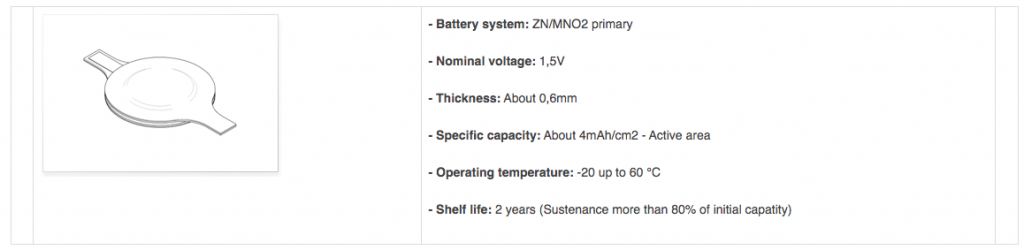

PAPER BATTERY – Model & Specyfication

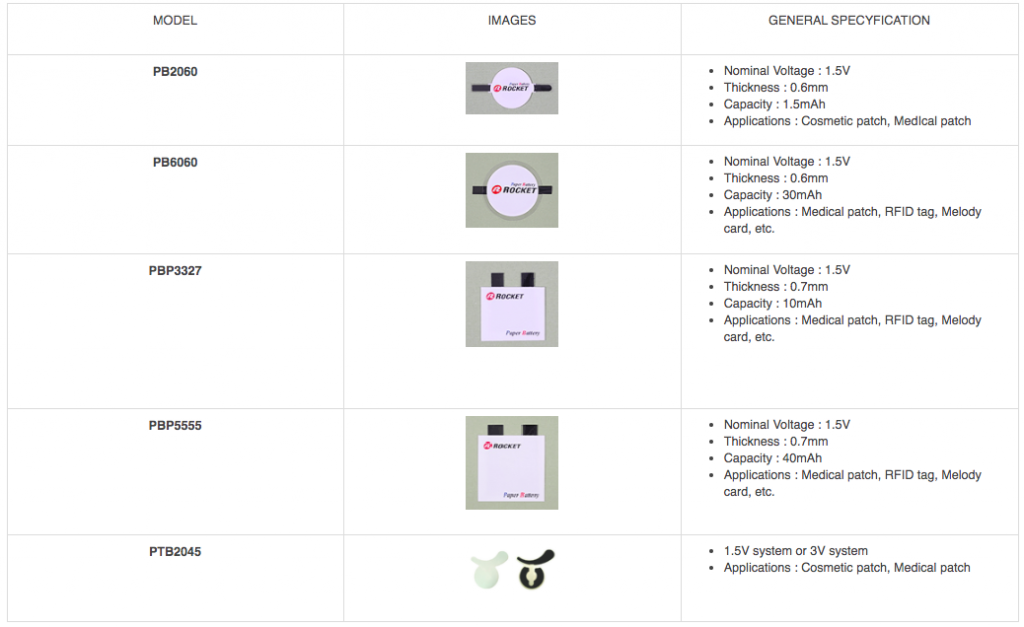

– Representative model is as shown. Size and shape could be changed freely, allowing the user to adjust to their size and capacity needs.
Product specyfication summary | |||||||||
Model No.: | Nominal Voltage | Capacity (mAh) | Dimensions (mm) | Weight (gr) | Applications | Data Sheet | |||
Diameter | Width | Length | Thickness | ||||||
PB2060 | 1,5 | 1,5 | 20 | – | – | 0,6 | 0,2 | Cosmetics, Medicals | |
PB6060 | 1,5 | 30 | 60 | – | – | 0,6 | 2 | RFID | |
PBP5555 | 1,5 | 40 | – | 55 | 55 | 0,7 | 2,5 | RFID | |
PBP3327 | 1,5 | 10 | – | 33 | 27,5 | 0,7 | 0,7 | RFID | |
PB2SP5555 | 3,0 | 40 | – | 55 | 55 | 1,3 | 4,5 | RFID | |
PB2SP3327 | 3,0 | 10 | – | 33 | 27,5 | 1,3 | 1,4 | RFID |
– We can make and supply a newly designed patch by customer.

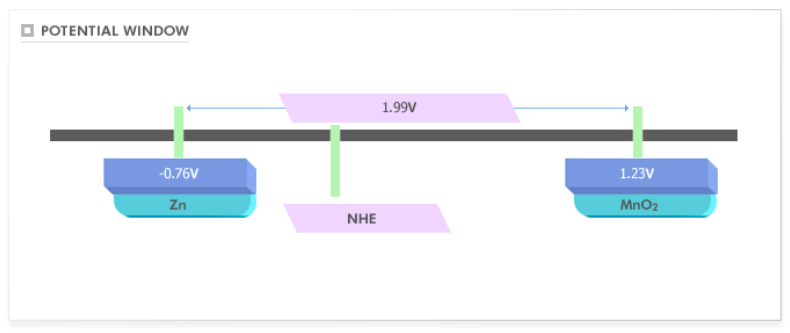

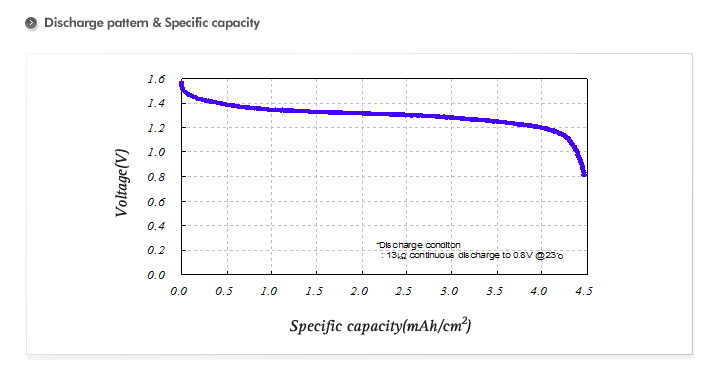

PAPER BATTERY – Technical Information

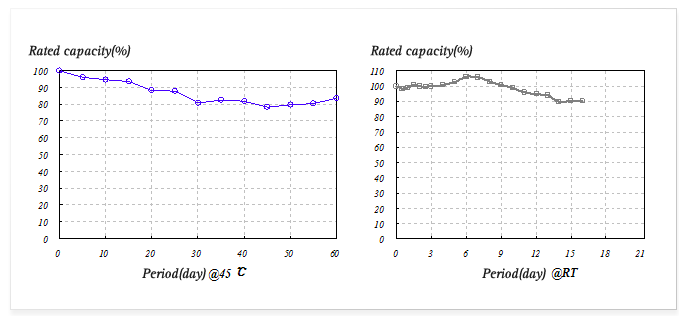

short time. Batteries are kept at 45℃ oven, and then checked the capacity every 5days. As the result of test, it held 80% of the initial capacity after 60days.
– We are also checking the life time by keeping the batteries at room temperature, and the result showed 90% of the initial capacity was maintained after 16months of the production.

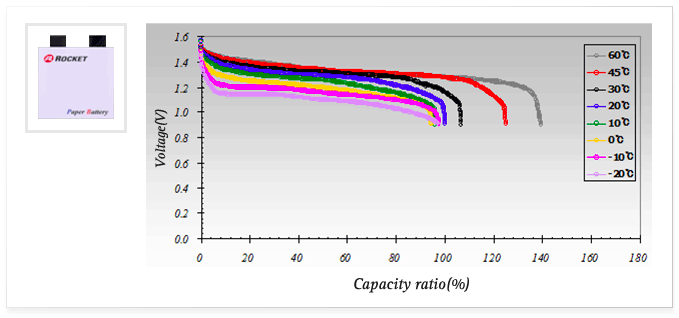

* Battery model : PBP5555
